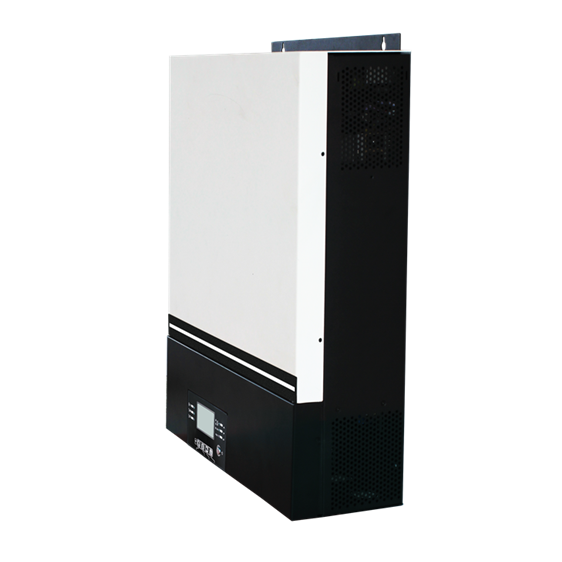

Hybrid off grid solar inverter series

This is a multi-function solar inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support in unit.

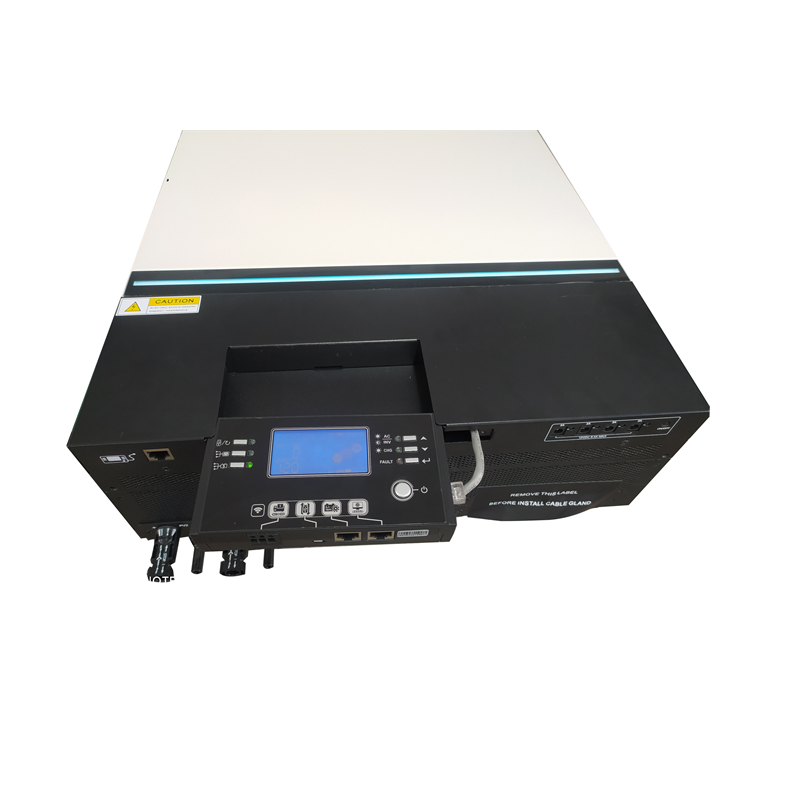

The comprehensive LCD display offers user-configurable and easy-accessible button operations such as battery charging current, AC or solar charging priority, and acceptable input voltage based on different applications.The inverter includes off grid, on grid from 1.5KW to 250KW.

Description

This is a multi-function solar inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support in unit.

The comprehensive LCD display offers user-configurable and easy-accessible button operations such as battery charging current, AC or solar charging priority, and acceptable input voltage based on different applications.

  • Pure sine wave
  • Configurable input voltage range for home appliances and personal computer via LCD setting
  • Configurable battery charging current based on appliances via LCD setting
  • ConfigurableAC/Solar Charging priority via LCD setting
  • Compatiableto mains voltage or generator power
  • Auto restart while AC is recovering
  • Overload /Over temperature /Short circuit protection
  • Smart battery charger design for optimized battery performance
  • Cold start function

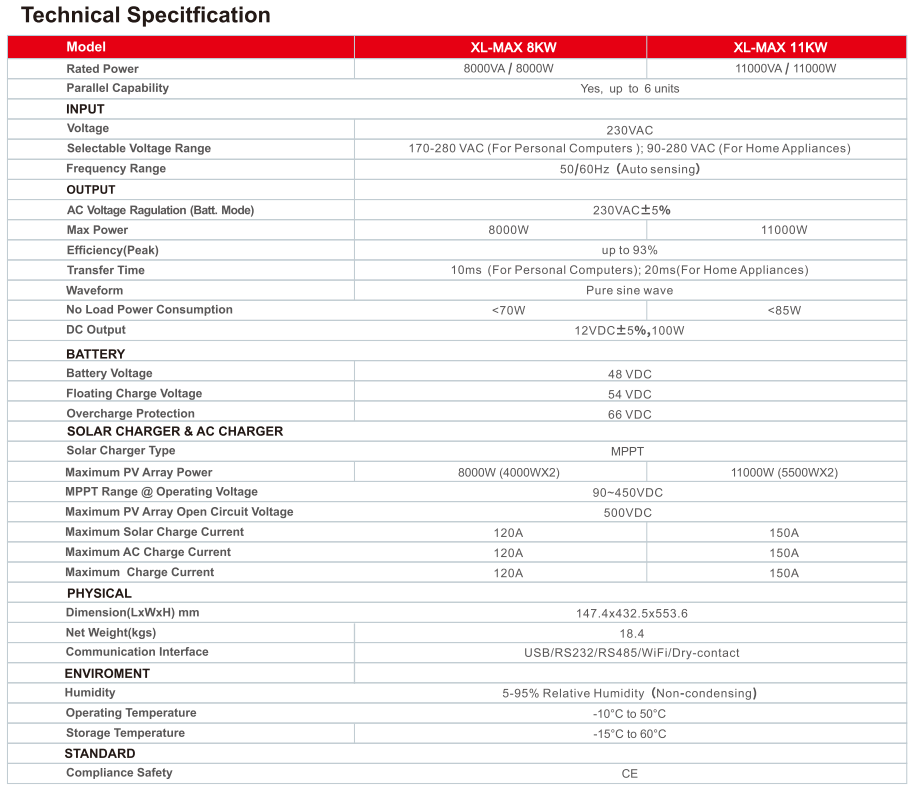

Additional information

Model

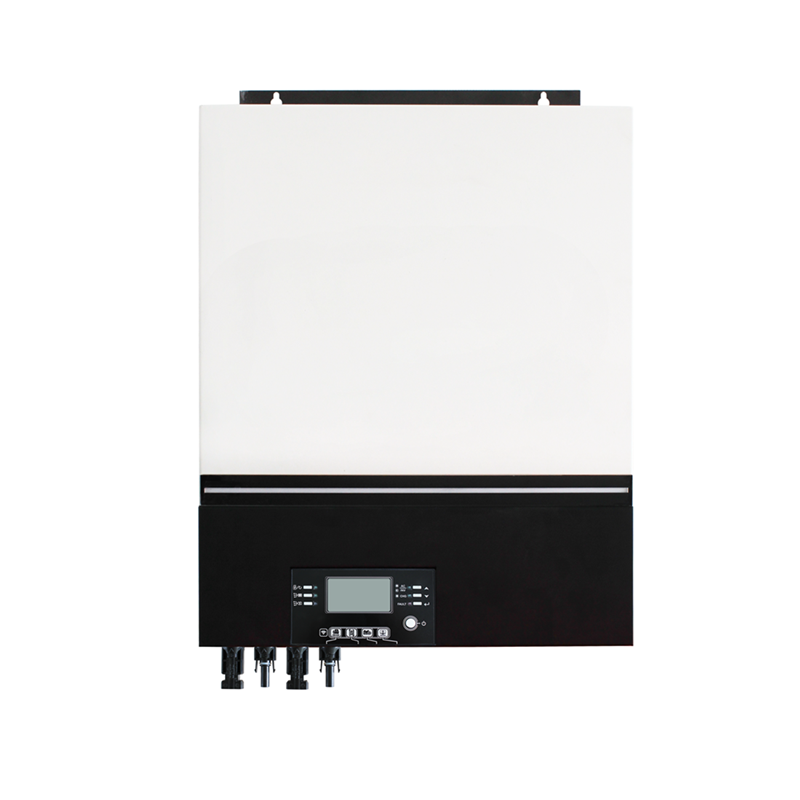

XL-MAX 8KW off grid solar inverter WiFi built in, XL-MAX11KW off grid solar inverter WiFi built in

Power

11KW, 8KW

Size(mm)

120*295*468

N.W(KGS)

18.4

Battery Voltage

48V
